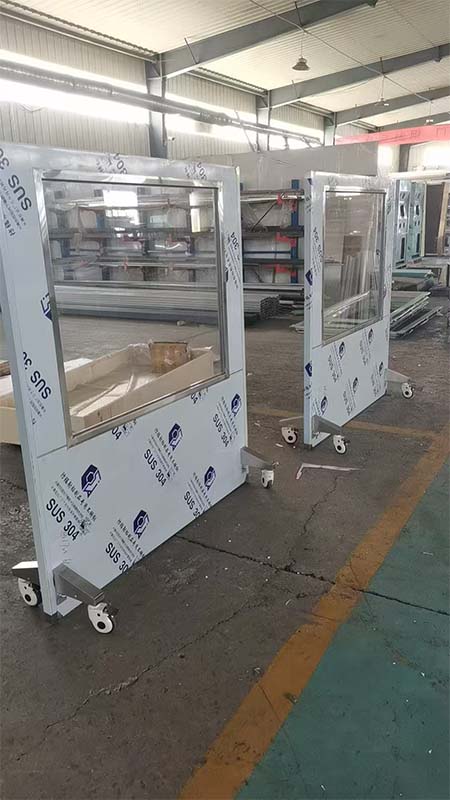

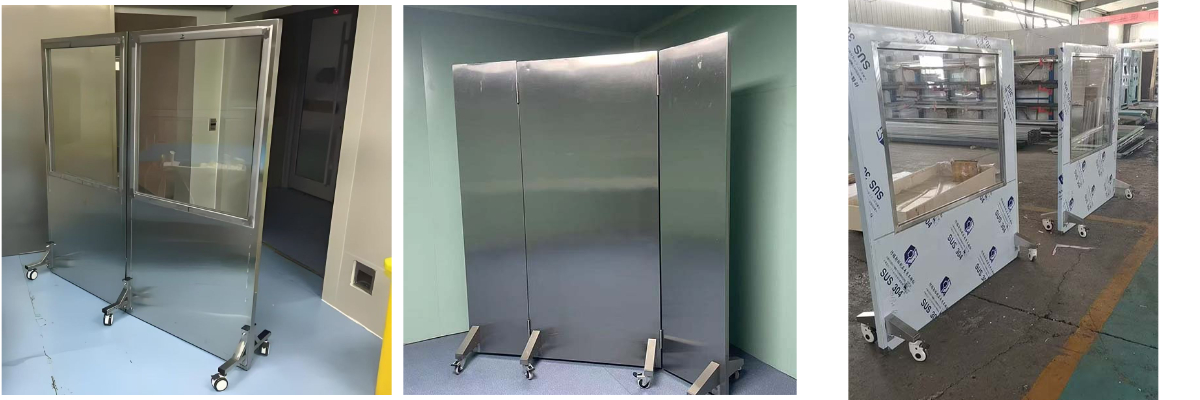

Lead Screen In Intervention Room
High protection: 0.5-3.0mmPb lead equivalent (customizable), 99.99% high-purity lead core, effectively shielding gamma rays (such as iodine-131).
Strong convenience: universal self-locking casters + adjustable height base (±15cm), medical operations can be moved as needed.
Anti-pollution: 304 stainless steel edging + anti-penetration coating, resistant to alcohol/84 disinfectant corrosion, reducing the risk of surface residue.
Excellent field of view: ≥86% transmittance lead glass, wide-angle design takes into account both protection and operation field of view

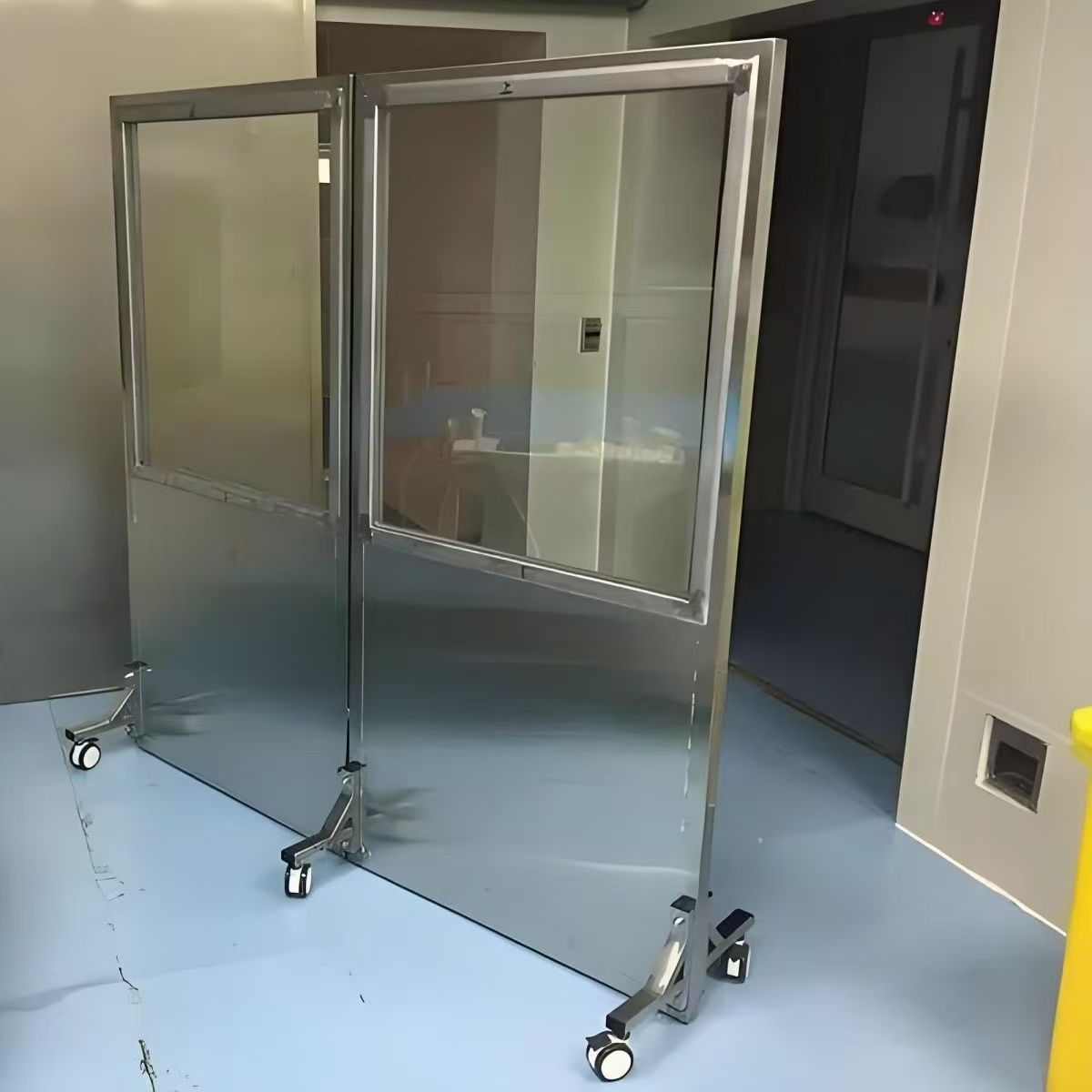

The X-ray protection lead screen in the interventional room uses 99.99% high-purity lead core (lead equivalent 0.5-3.0mmPb can be customized), and the multi-layer composite structure ensures that the gamma-ray shielding efficiency is greater than 99.5% (verified by third-party testing). The observation window uses 12mm aviation-grade explosion-proof lead glass with a light transmittance of ≥86% and a lead uniformity error of less than 3%, eliminating visual distortion. The edge is double-sealed with lead rubber + 304 stainless steel to protect without dead angles.
Clinical ergonomics optimization

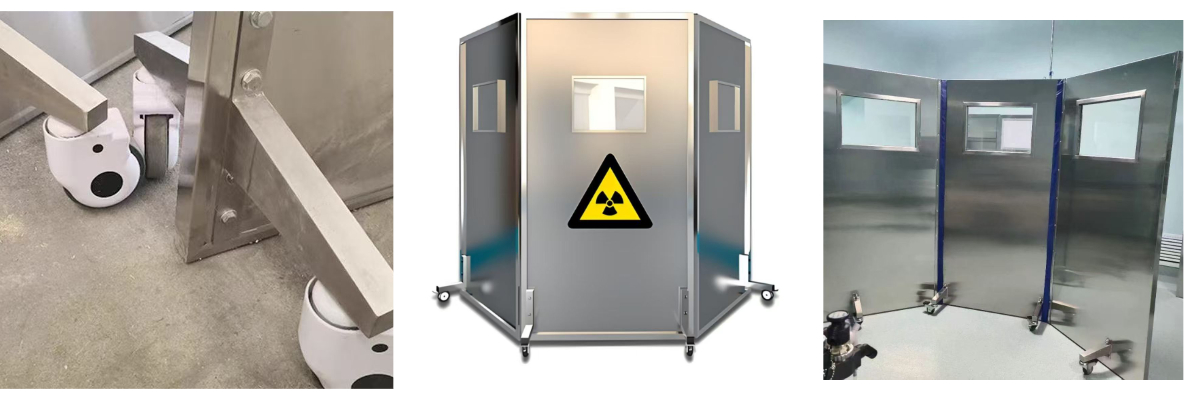

Intelligent mobile system: heavy-duty silent universal wheels (4-wheel dual brakes + 8-level load-bearing adjustment) support 300kg load, meeting the high-frequency movement requirements of DSA rooms and orthopedic operating rooms.
Operator-friendly design: The observation window can be tilted 10°-45° to reduce cervical strain for medical staff; a cable channel for equipment is reserved at the bottom to avoid the risk of tripping during surgery.
Anti-pollution treatment: The surface nano coating can withstand repeated wiping with iodine, blood stains and alcohol, and has passed 10,000 abrasion tests (ISO 5470 standard).
Medical scenario application solution
Interventional operating room protection
Configure a 3.0mmPb mobile screen group (supports three-screen linkage), build a U-shaped protection zone around the catheter bed, and reduce the operator's scattered radiation dose to <2μSv/h (GBZ 130-2020 standard limit 25μSv/h).
DR/CT examination room

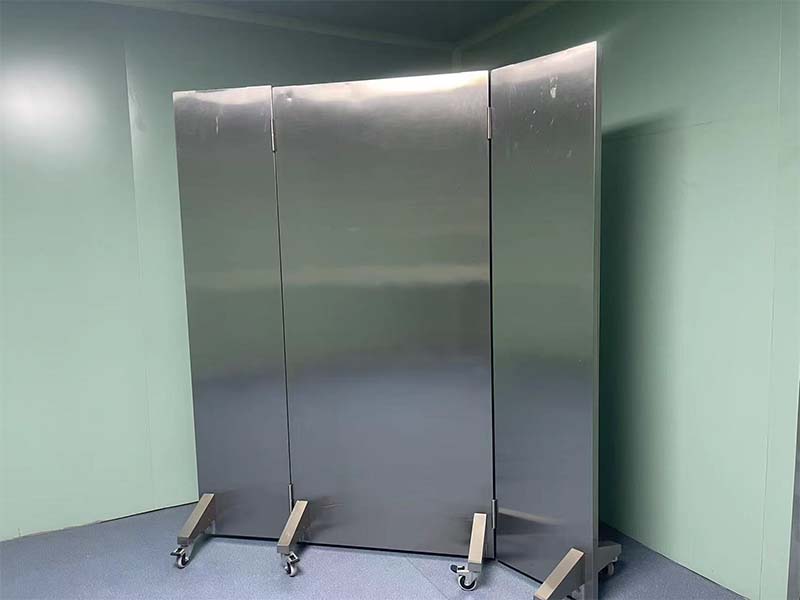

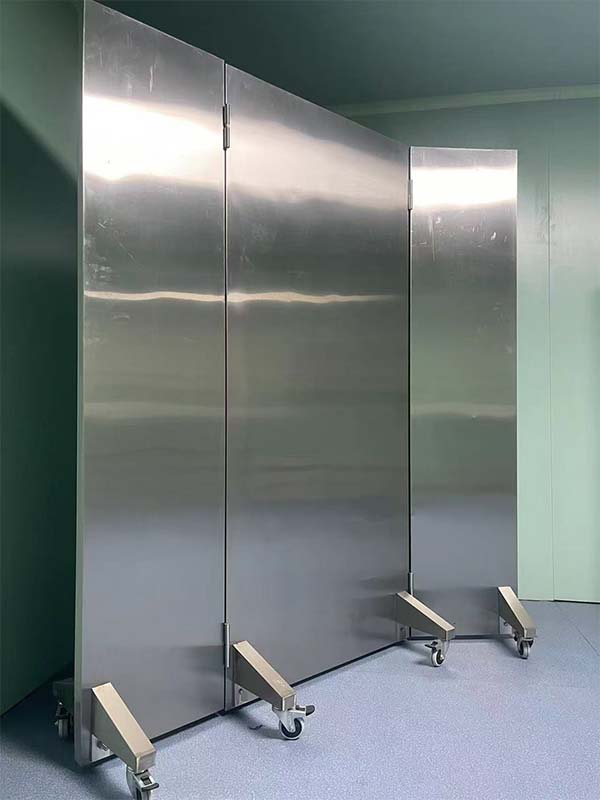

The foldable double-sided screen (unfolded area 2.8m×1.6m) quickly isolates the operating room and the scanning room, and the lead glass has a built-in anti-fog heating film to adapt to drastic changes in temperature and humidity.
Bedside radiation protection
The ultra-thin screen (1.0mmPb/weight only 42kg) is equipped with quick-release components, which can be deployed in the ICU ward in 5 minutes, and the protection area covers the patient's trunk key organs.
Quality and service guarantee
Precise installation: Provide radiation dose cloud map scanning service to optimize the placement of screens
Warranty upgrade: 5-year main body warranty, free lifetime protection performance testing
