Lead Sheet Rolls
High-efficiency protection: Extremely high density, effectively shielding ionizing radiation such as X-rays and gamma rays.
Easy construction: Good flexibility, easily rolled and cut, adaptable to complex structures.
Stable and durable: Resistant to acid and alkali corrosion, excellent ductility, combining strength and plasticity.
Environmentally friendly and economical: Supports cold bending without thermal cracking, and 100% recyclable, offering excellent value for money.
ead sheet coil is a flexible protective material made of high-purity lead (Pb≥99.99%) through cold rolling process. It has excellent radiation shielding, corrosion resistance and processing performance, and is widely used in high-precision protection fields such as medical and nuclear industries. The following are the core characteristics and parameters of the product:
Basic parameters
Material: in line with GB/T 1470 standard, density 11.34g/cm³, impurities ≤0.05%, purity up to 99.99%
Specifications: thickness 0.1-30mm (conventional 0.5/1/2/5/10mm), width 100-1500mm, single roll length 20 meters, customizable sheets
Surface treatment: optional PVC coating or stainless steel coating to improve wear resistance and environmental adaptability
Core performance
High-efficiency radiation shielding
The high density of lead makes its shielding rate for X/γ rays exceed 99% (such as 10mm thickness can block 150kV X-rays), and the lead equivalent reaches 0.5mmPb/mm, which meets the protection needs of CT rooms, nuclear power plants and other scenes.
Corrosion-resistant and durable
It can withstand acid and alkaline environments with a pH of 2-12, resist corrosion from sulfuric acid and hydrochloric acid, and has a service life of more than 20 years. It is suitable for anti-corrosion projects such as chemical pipeline lining and battery manufacturing.
Flexible and easy to process
The elongation rate is ≥45%, supports cold bending, riveting and lead welding, can fit architectural curved surfaces or special-shaped structures, and has high construction efficiency.
Environmentally friendly and safe
100% recyclable, RoHS certified, no harmful substances released, and meets medical and laboratory cleanliness standards.
Application scenarios

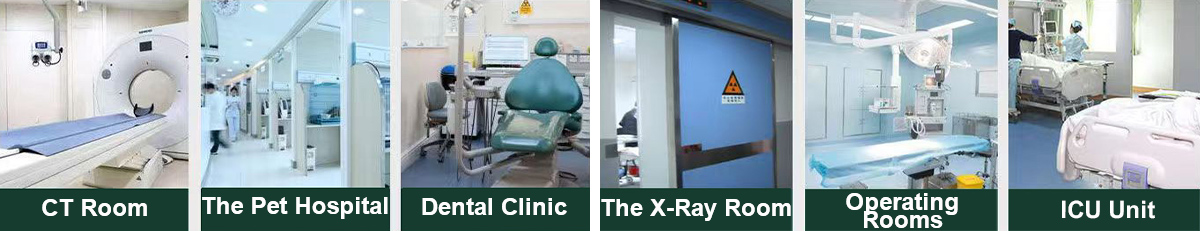

Medical protection: DR/CT room walls, lead glass frames, protective doors and windows
Nuclear energy: nuclear reactor shielding, radioactive waste transport tanks
Industrial anti-corrosion: electroplating tanks, pickling equipment linings, battery plates
Building sound insulation: acoustic laboratory sound insulation barriers (noise reduction ≥ 30dB)
Service support
The product complies with ASTM B29 and EN 12588 international standards, provides SGS material reports and radiographic testing certification, supports OEM customization, technical solution design and construction guidance, and is suitable for high-end scenarios such as military industry and scientific research. During installation, ensure that the base layer is flat, the joints are sealed with lead tape, and the operator must wear protective equipment.
Lead sheet rolls have become the preferred material in the field of radiation and corrosion protection with high cost performance, long life and adaptability to multiple scenarios.
