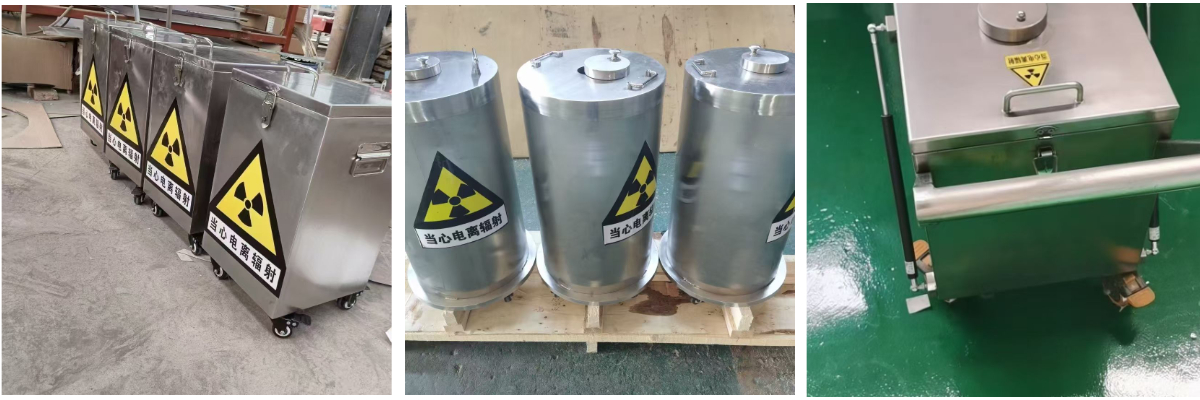

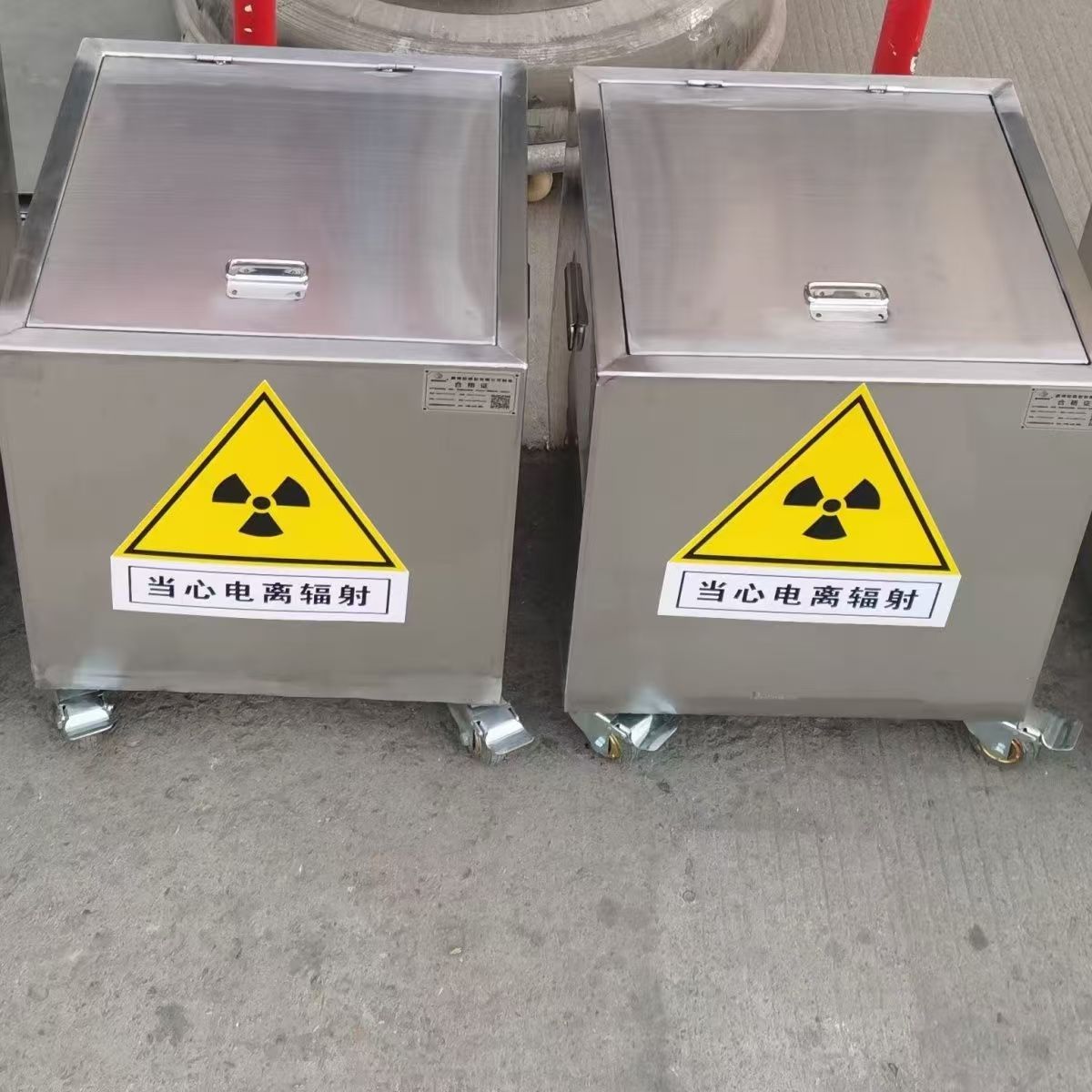

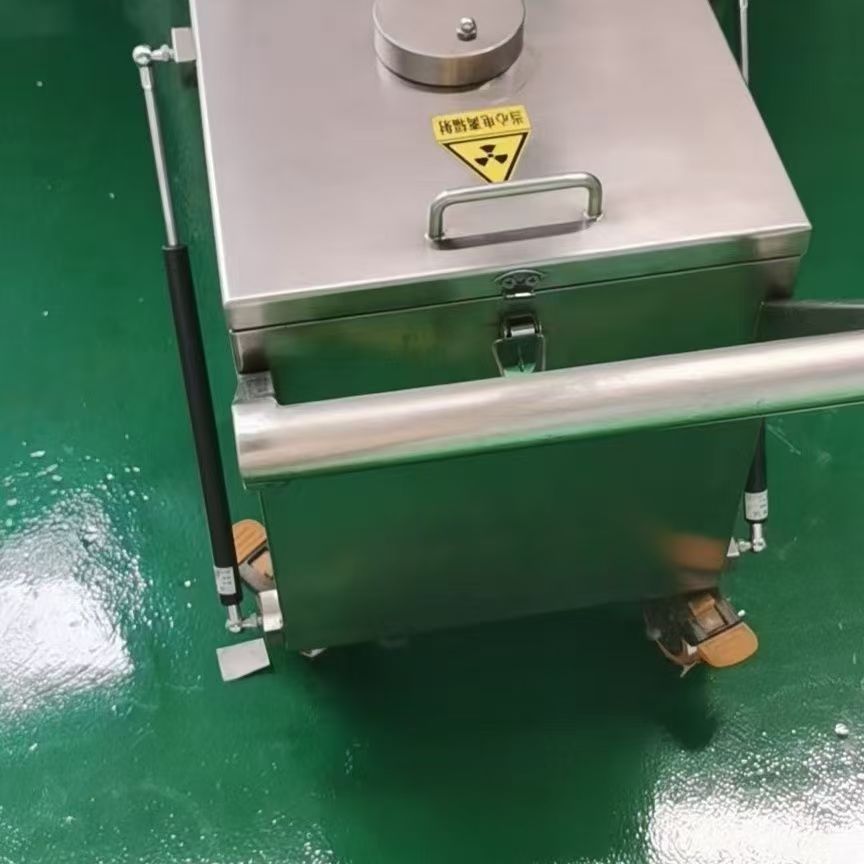

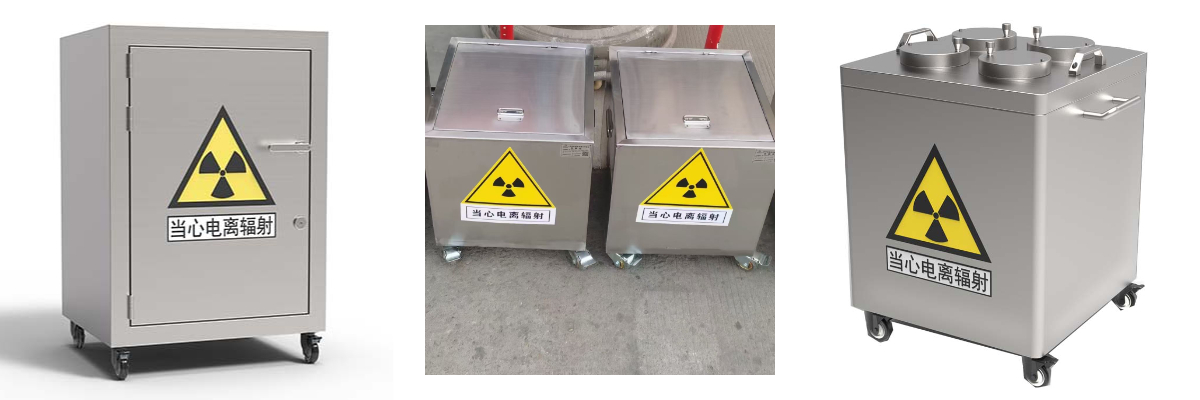

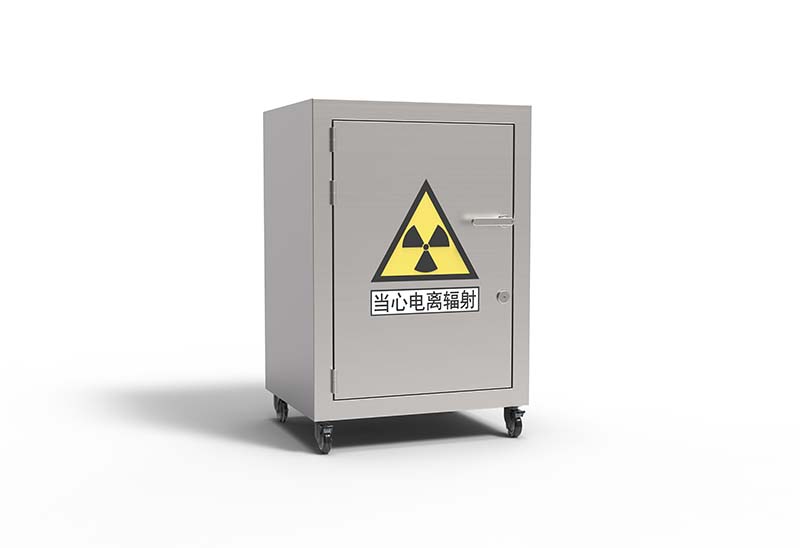

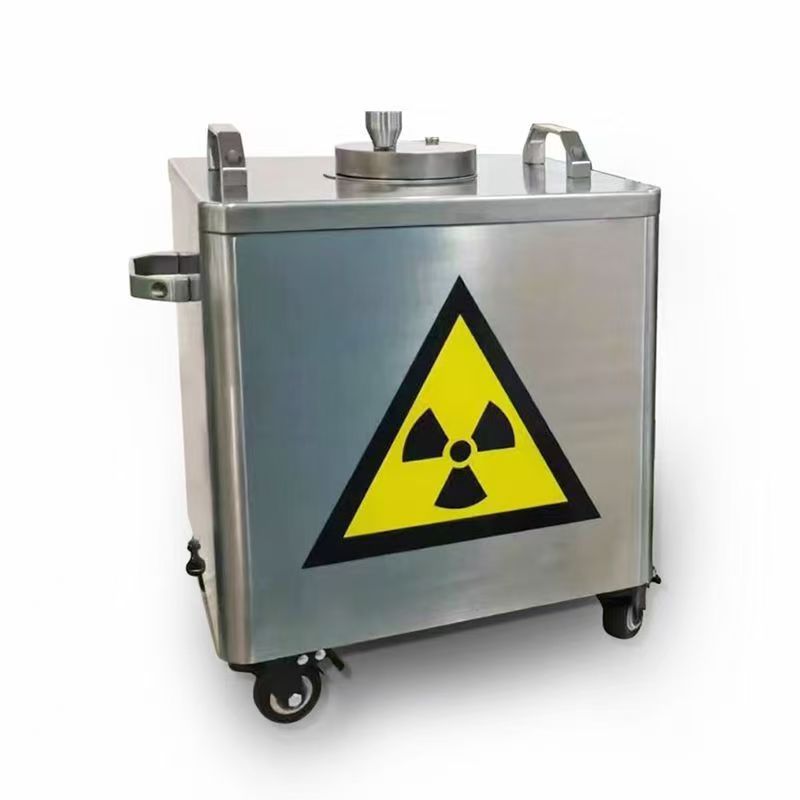

Lead Storage Safe
Super strong protection: ≥99.99% high-purity lead layer + steel shell, double shielding of γ/X-rays, radiation attenuation rate >99% (lead equivalent can be customized to 50mmPb+).
Absolute safety: explosion-proof lock body + two-person control design, passed fireproof certification (1200℃/1h), anti-violent opening, and eliminate the risk of radioactive source theft.
Intelligent management: optional electronic password lock + activity monitoring system, real-time recording of access data, linkage alarm device.
Compliance certification: in line with IAEA safety standards and GB 11806, providing full material test reports, meeting the audit requirements of strong regulatory scenarios.
Space customization: lined with anti-corrosion alloy, supports layered/compartmental modification, and adapts to multiple storage needs such as medical sources and industrial flaw detection sources.
Use military-grade protection to create an "absolutely safe space" for radioactive materials
Lead storage safe product description
Product positioning
Lead storage safe is a safe storage device designed for high-risk radioactive materials (such as medical radiation sources, industrial flaw detection sources, radionuclide agents, etc.). Through the integration of high-purity lead shielding layer and reinforced steel structure, it realizes the dual protection of radiation protection and physical security, and meets the mandatory safety storage needs of nuclear medicine, laboratories, nuclear power plants and other scenes.
Core protection design
Military-grade shielding structure
Triple composite protection body:
Outer layer: 3mm thick 304 stainless steel explosion-proof shell, impact corrosion resistance;
Core layer: ≥99.99% high-purity lead liner (lead equivalent 15mmPb~50mmPb can be customized), γ/X-ray shielding efficiency＞99%;
Inner lining: aluminum alloy anti-pollution coating, easy to decontaminate and clean.
Seamless sealing process: laser welded lead body + door frame labyrinth mosaic structure to prevent radiation leakage.
Intelligent security system
Dual control access mechanism:
Mechanical anti-drilling lock core + two-person independent electronic password lock (optional fingerprint/IC card), mandatory decentralized management;
Real-time monitoring module (optional):
Built-in radiation sensor, over-threshold sound and light alarm;
Store and access electronic logs, support data export audit.
Extreme environment tolerance
Passed GB/T 9978 fireproof certification: keep the structure intact for 1 hour at 1200℃ high temperature;
Bottom anchor interface, designed to resist 9-magnitude earthquake (according to GB 50011).
Technical parameters
Shielding performance: lead equivalent 15mmPb (standard), up to 50mmPb customization
Safety level: C-level anti-theft certification (GB 10409), anti-hydraulic shear damage ≥ 60 minutes
Capacity specification: 30L~500L (support layered/grid customization)
Fire protection standard: 1200℃ fire resistance for 1 hour (GB/T 9978-2015)
Compliance certification: IAEA SSG-46, GB 11806-2019
Application scenarios
Medical field:
Hospital nuclear medicine department (iodine-131, technetium-99m drug storage), radiotherapy department radioactive source storage;
Industrial scenario:
Industrial CT radioactive source library, flaw detector cobalt-60/iridium-192 source safe storage;
Scientific research institutions:
Isotope laboratory high-activity sample storage, temporary storage of nuclear waste.
Customized service
Space configuration: adjustable shelves, pull-out trays, source rod fixing rack;
Function expansion:
Linked access control system, two people unlock before opening;
Add temperature and humidity monitoring and remote alarm devices;
Special adaptation:
Underground warehouse moisture-proof type, anti-magnetic interference type (suitable for precision instrument environment).
Redefine the safety of radioactive sources with military-grade protection - from physical shielding to intelligent management and control, build a foolproof "radioactive source safety fortress".
