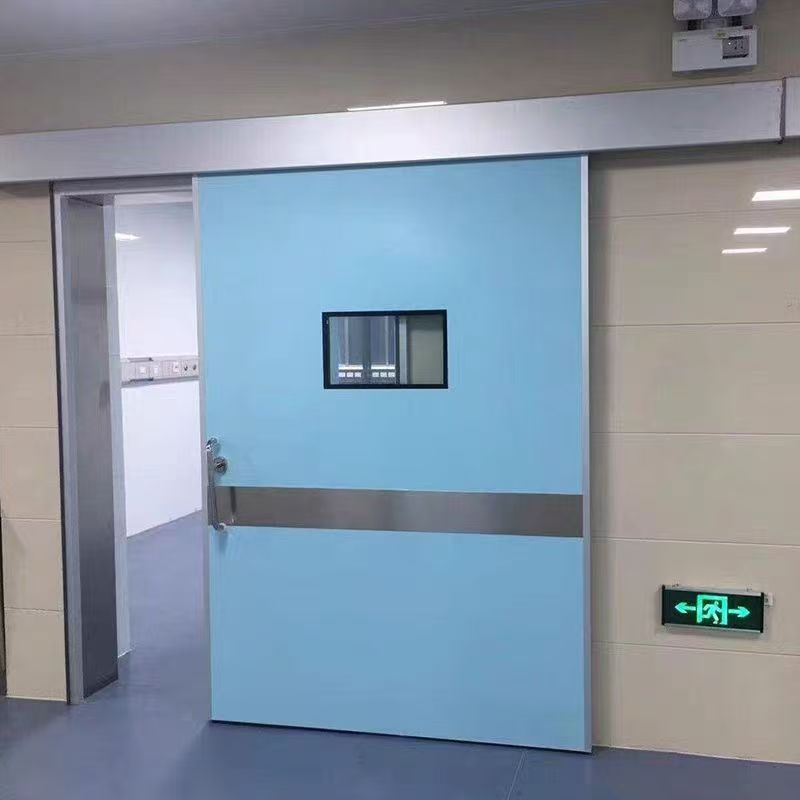

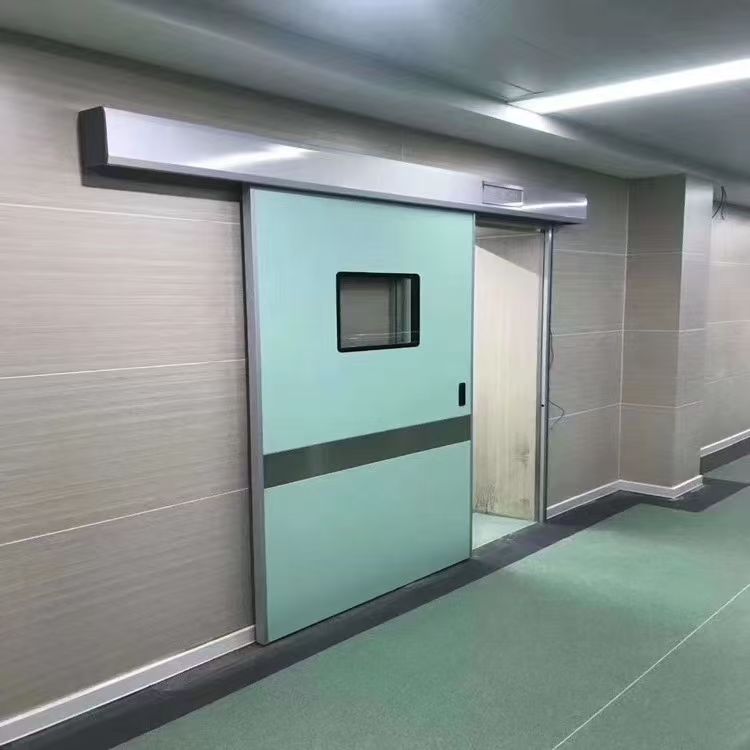

Single-opening Airtight Door
Core advantages of single-opening airtight door in operating room
High airtightness: multi-layer sealing design, adaptive pressure difference, ensuring stable positive pressure in clean area and effectively blocking pollution;
Intelligent control: induction opening and closing (radar/foot touch optional), anti-pinch protection, linkage purification system, improving surgical safety and efficiency;
Durable material: aviation-grade aluminum alloy/stainless steel frame, antibacterial coating panel, impact resistance, corrosion resistance, life span over 100,000 times;
Low noise and energy saving: silent guide rail motor, operating sound pressure <45dB, power consumption reduced by 30%;
Customization: support size, opening direction, functional module (swipe card/swipe card) to flexibly adapt to various clean level operating room requirements.
The single-leaf airtight door for operating rooms serves as a critical barrier for maintaining a sterile environment. Our product offers comprehensive customization options to meet the specific requirements of different medical scenarios, ensuring seamless integration with the operating room's cleanliness standards, spatial layout, and usage habits. The detailed customization solutions are as follows:
1. Flexible Size Customization
Door Dimensions: Supports non-standard door openings with widths ranging from 800mm to 1500mm and heights from 2000mm to 2200mm. Special ultra-wide/ultra-high requirements can be individually designed for perfect architectural alignment.
Door Thickness: Standard 40–50mm thickened door panels with high-density fireproof and soundproof filling; thickness can be adjusted based on insulation/noise reduction needs.
2. Adjustable Opening Direction
Swing Direction: Left-hand, right-hand, inward, or outward swing options, with an optional sliding (hidden rail) design for narrow corridors or space-constrained environments.
Operation Mode: Manual (mechanical buffered hinges), electric (sensor/button control), or semi-automatic (push-pull assisted) modes available.
3. On-demand Functional Modules
Smart Access Control: Optional card swiping, fingerprint, facial recognition, or keypad entry for customized access management.
System Integration: Synchronizes with operating room air purification units and lighting systems, automatically adjusting airflow upon door opening to maintain pressure stability.
Safety Features: Dual infrared + mechanical anti-pinch protection, emergency manual release (for power outages), complying with medical safety standards.
4. Compliance with Cleanliness Standards
Airtightness Levels: Adheres to ISO 14644 standards, offering Class 5–Class 8 sealing solutions with medical-grade silicone gaskets and magnetic seals to block PM2.5 infiltration.
Material Options: 304 stainless steel (anti-corrosion), antibacterial-coated steel panels (easy cleaning), tempered glass windows (anti-fog visibility), etc., meeting various sterilization requirements.
![Single-opening Airtight Door]( "Single-opening Airtight Door")
5. Additional Customization Services
Aesthetic Design: Customizable door colors (e.g., medical blue, matte gray) and markings (warning labels/hospital logos).
Special Requirements: Radiation-proof lead lining (for DSA operating rooms), fire-rated certification (1-hour fire resistance), and other specialized customizations.
Summary: Our single-leaf airtight door adopts a modular design, enabling end-to-end customization in dimensions, functions, and materials to strictly align with operating room construction standards (e.g., GB 50333, JGJ 49). It delivers precise and reliable protection for medical sterile environments.
