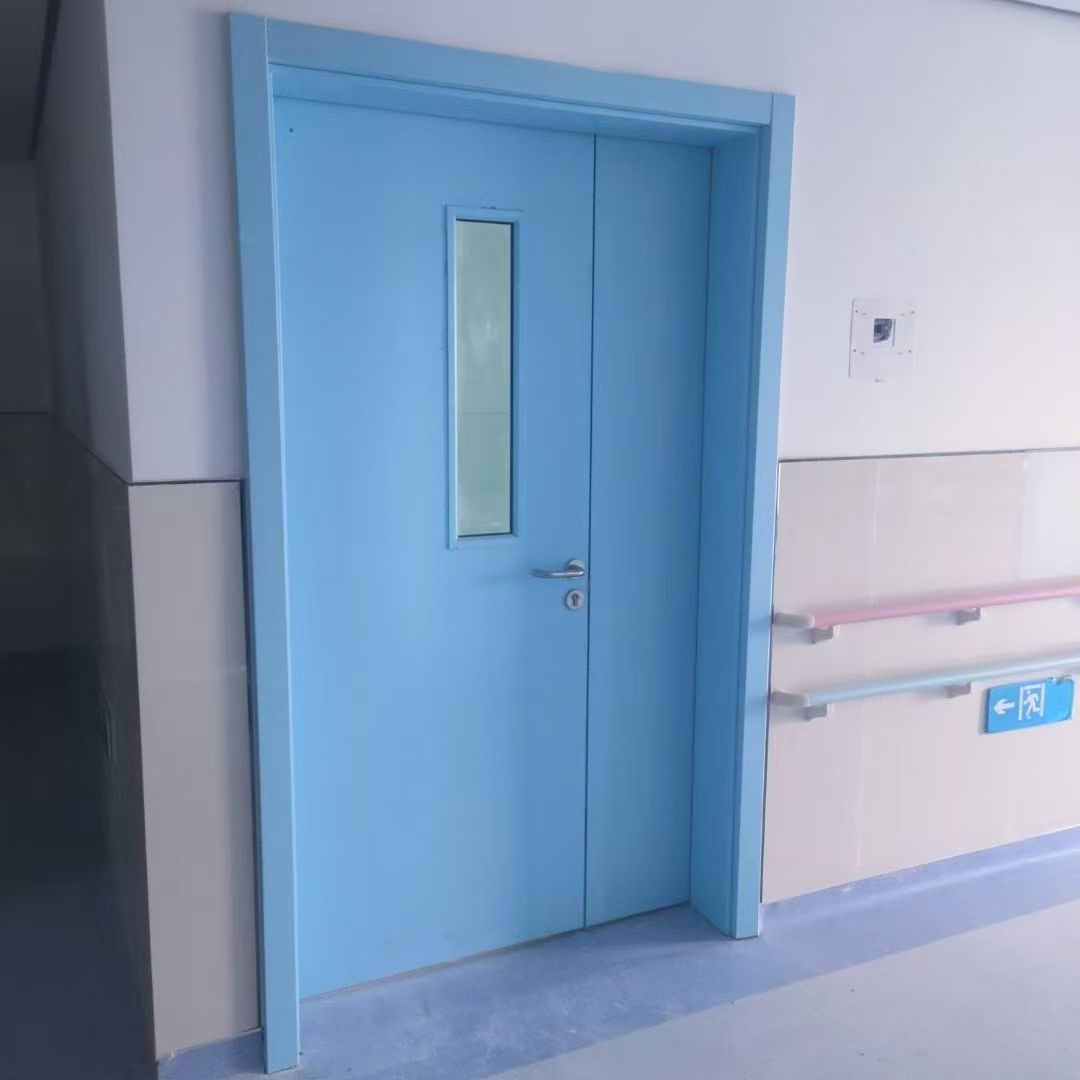

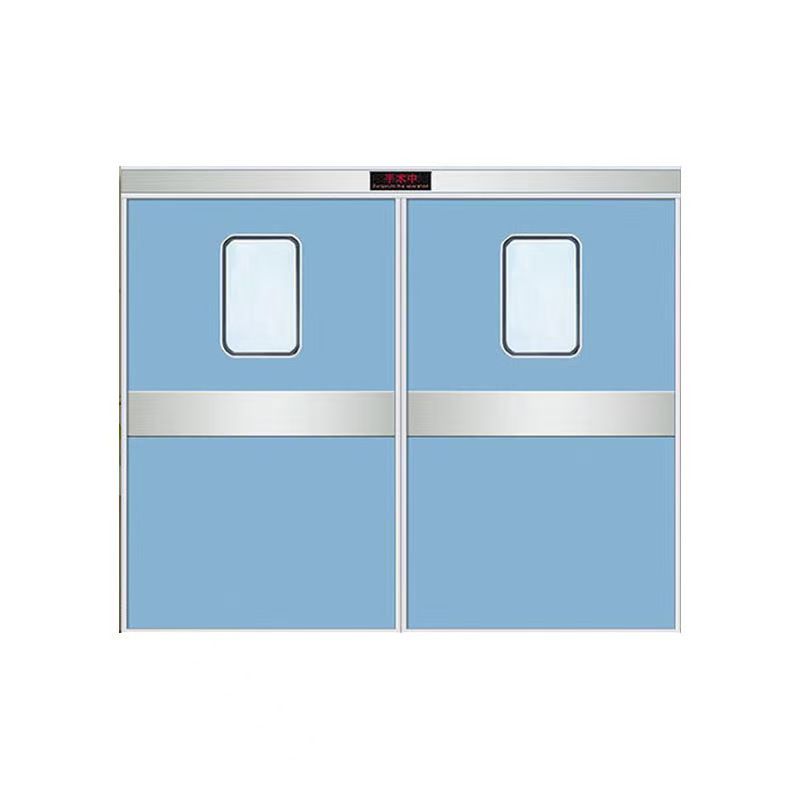

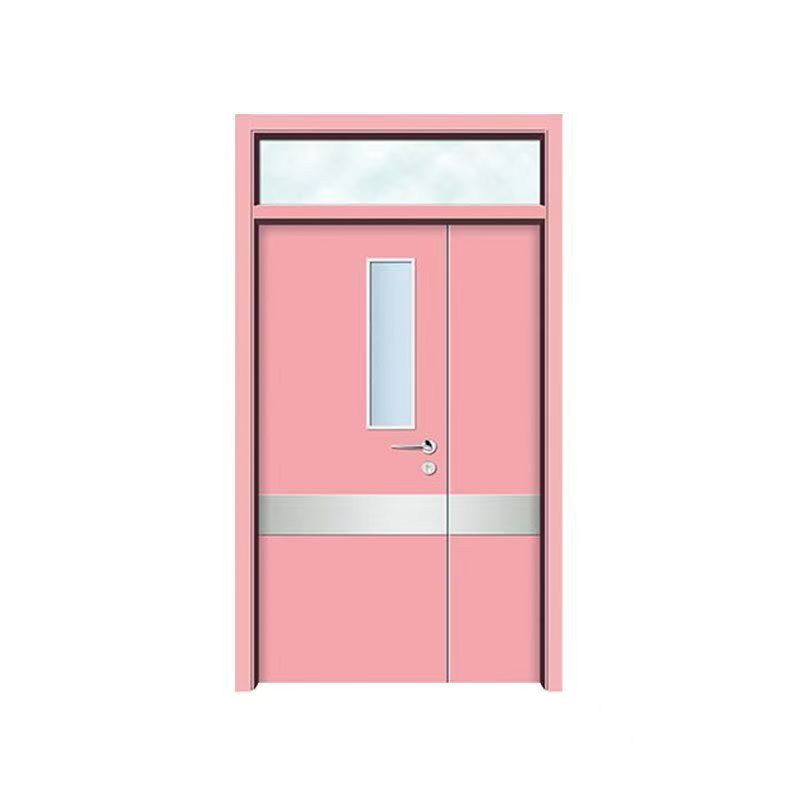

Customized Hospital Door

Hospital door product details

Hospitals are fortresses to protect health, and doors serve as hubs connecting various functional spaces, which are directly related to medical safety, infection control and operational efficiency. Professional hospitals integrate medical standards, ergonomics and durable technology, providing outpatient clinics, medical and technical departments, general wards and public areas with four-in-one solutions of safety protection, sanitation barriers, efficient passage and quiet comfort, building a basic line of defense for a modern medical environment.

Core functions and technical analysis

1. Active hospital infection prevention and control system

Antibacterial shield: The door leaf uses galvanized steel plate/anti-bacterial aluminum-plastic plate substrate, and the surface is covered with medical-grade nano-silver ion coating (compliant with ISO 20743 standards). The antibacterial rate for common pathogens such as E. coli and Staphylococcus aureus is ≥99%, blocking the contact transmission chain.

Seamless cleaning design: Integrated bending process achieves no joints and no dead corners throughout the door, and R10 rounded corner treatment. The surface is resistant to 84 disinfectant, hydrogen peroxide and other strong corrosion reagents scrubbed 20 times a day, and will not change color for ten years and will not corrode.

Airtight anti-pollution: EPDM sealant strips are embedded on three sides of the door frame (Shore hardness 70±5), and seal strips are automatically lifted at the bottom. The airtightness reaches the national standard GB/T 7106 with the highest level 8 (≤0.5m³/m·h@100Pa), effectively isolating dust and droplet cross-contamination.

2. Security protection for all scenes

Injury protection design:

Anti-pinching hand: The door leaf edge is concave 15mm + flexible TPU wrapping to physically eliminate the risk of clamping.

Anti-collision: 1.2mm thickened profile + internal honeycomb aluminum core filling, impact strength ≥300J, and tolerate accidental collisions of the hospital bed/equipment.

Intelligent observation window: Standard equipped with 5+5mm tempered laminated glass window (400×600mm), optional dimmed glass or built-in louvers to balance monitoring needs and patient privacy. Rounded corners and edges to prevent sharp angle damage.

Fire-proof and escape guarantee: The core products have passed GB 12955 certification (Class A/B fireproof), fire resistance time limit is 60-90 minutes, and flame-retardant materials delay the spread of fire.

3. Efficient passport and humanized experience

Accessible access:

Customized door opening width (ward ≥900mm, public area ≥1200mm)

Fully flat sill design (height difference ≤3mm), wheelchair and stretcher unobstructed

Silent operating system: Hydraulic door closer + nylon silent bearing, operating noise ≤30dB (class A standard), noise reduction of more than 50%, ensuring a quiet diagnosis and treatment environment.

Smart opening solution: Supports contactless inductive door opening (radar/foot sense) and electric sliding doors to reduce the risk of hand contact infection.

4. Medical-grade durable architecture

100,000 times of life verification: The hinge/ground spring is tested by EN 1634 standard cycle, ensuring stable service for 8 years with an average of 300 openings and closings per day.

Environmental adaptability:

Humidity tolerance: RH95% (40℃)

Temperature tolerance: -30℃~80℃

Anti-UV aging: QUV accelerated test for 3000 hours without fading

Maintenance convenience: Modular hardware system, door closeter/lock body quickly disassemble and replace in 10 minutes, minimizing downtime.

Customization and compliance guarantee

Flexible adaptation: Supports non-standard size (up to 3000×2500mm), curved wall installation and special opening methods (maternal and child doors, bidirectional spring doors).

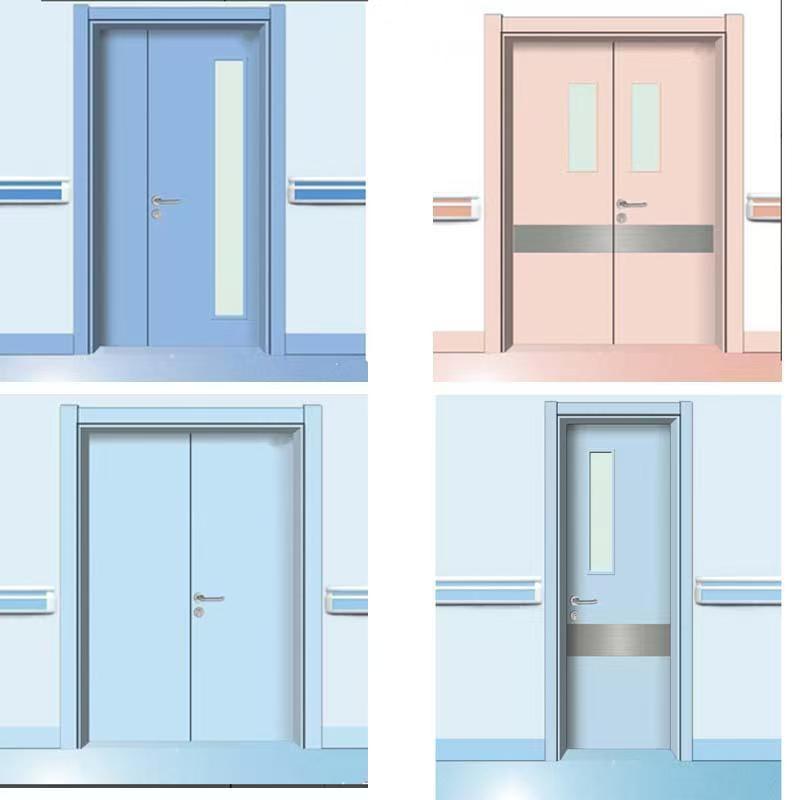

Visual medicalization: Provides 20+ standard medical colors (such as blue and green anti-glare color systems), supporting surface treatments such as wood grain/solid color/anti-bacterial soft bags.

Full-chain certification:

Safety: GB 18045 "General requirements for medical doors"

Environmental protection: GB 18584 formaldehyde emission ≤0.5mg/L

International: CE/UL certified hardware

Professional hospital doors are the "silent guardians" in medical buildings. Through the four core values of active antibacterial, extreme safety, efficient passage, and ultra-long life, they play an irreplaceable role in reducing hospital infection risks, improving operational efficiency, and optimizing the doctor-patient experience. Choosing a medical-specific door is a respect for the dignity of life and a basic investment in the construction of a modern hospital.
