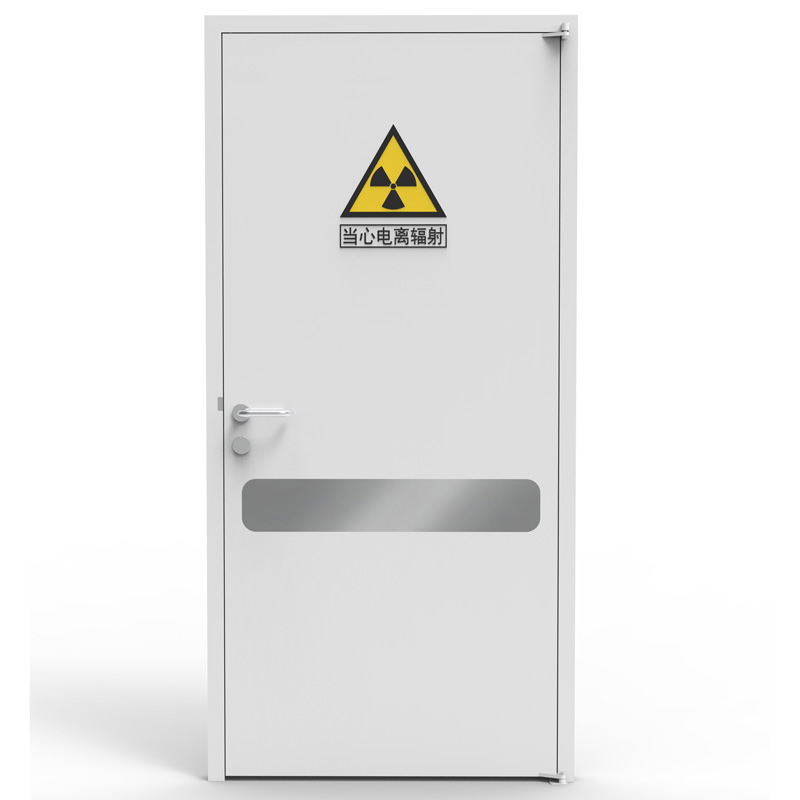

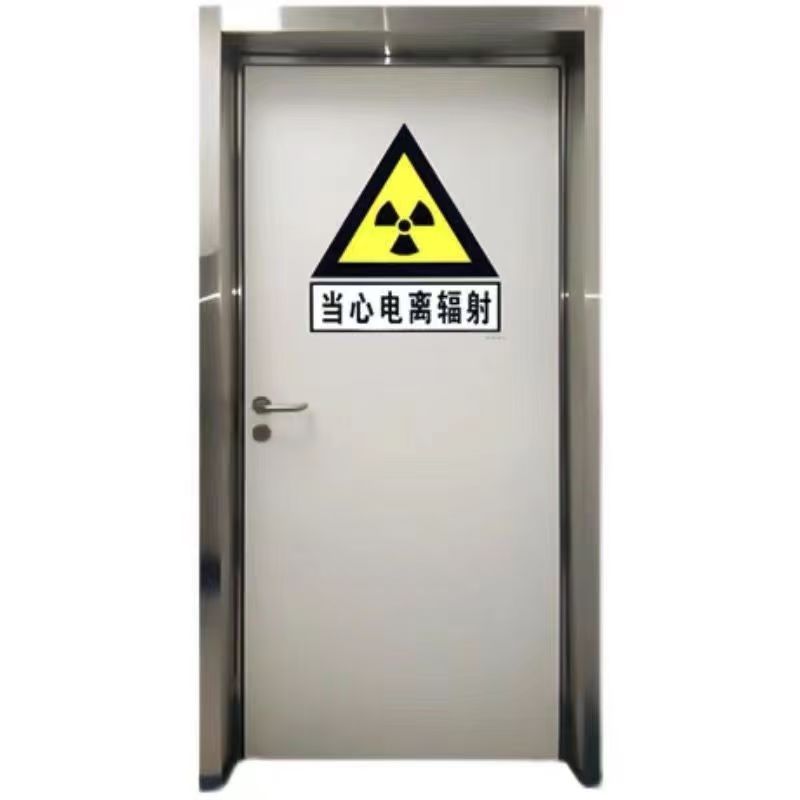

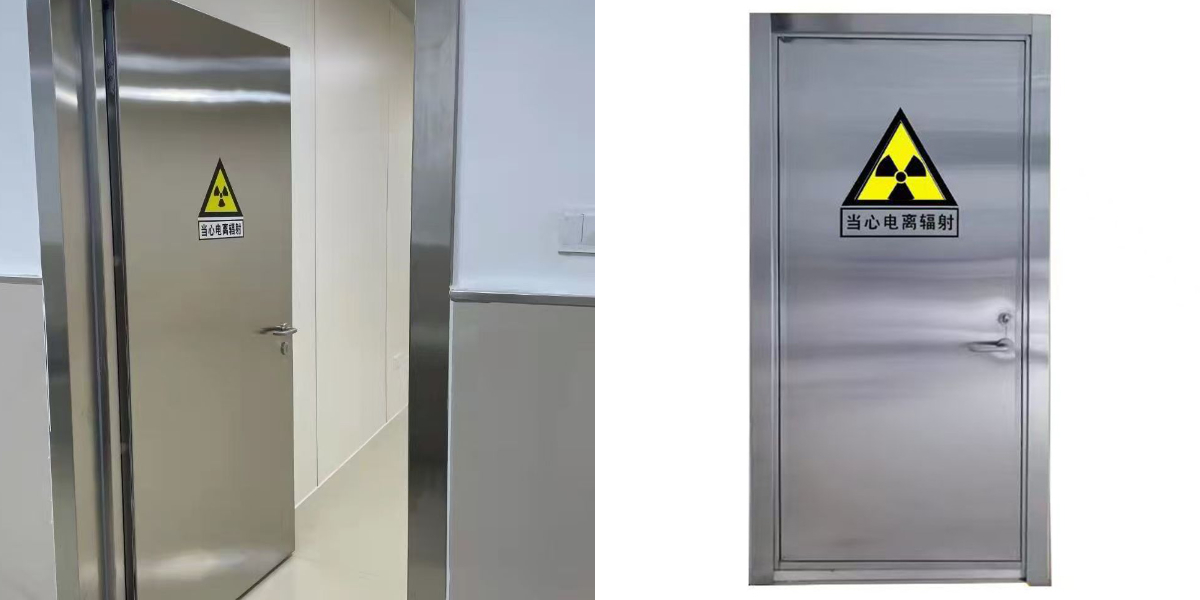

Swing Lead Door

Product Introduction
The Swing Lead Door, also known as Single-Leaf Lead Door or Movable Lead Door, is specifically designed for areas with lower radiation intensity and a need for airtight performance. It is commonly installed in personnel access passages where wall thickness and passage dimensions are relatively small. Featuring compact structure, effective radiation shielding, and smooth operation, Swing Lead Doors provide safe and convenient entry and exit for medical and industrial environments requiring radiation protection.

Product Structure

Door Panel

The door panel of the Hinged Lead Door is crafted from a variety of high-quality materials, with 201 or 304 stainless steel being the most commonly used options. Built with an internal steel frame for enhanced durability, the door is internally lined with high-purity lead sheets (up to 99.994% purity) to deliver superior radiation shielding performance.
Alternative exterior panel materials are also available, including color-coated steel sheets, cold-rolled steel plates, and decorative boards, offering flexibility to meet different design and functional requirements.

Lead Sheet

The lead sheet is the core radiation shielding component of the Hinged Lead Door. It is typically manufactured using national standard No. 1 electrolytic lead (commonly referred to as lead skin or lead plate).
Lead sheets are available in thicknesses ranging from 0.1mm to 160mm, with widths up to 1600mm and lengths up to 13 meters. Custom dimensions and specifications can be negotiated based on specific project requirements.
Manufacturers select the appropriate lead sheet thickness according to the desired lead equivalency (Pb value) to ensure optimal radiation protection.

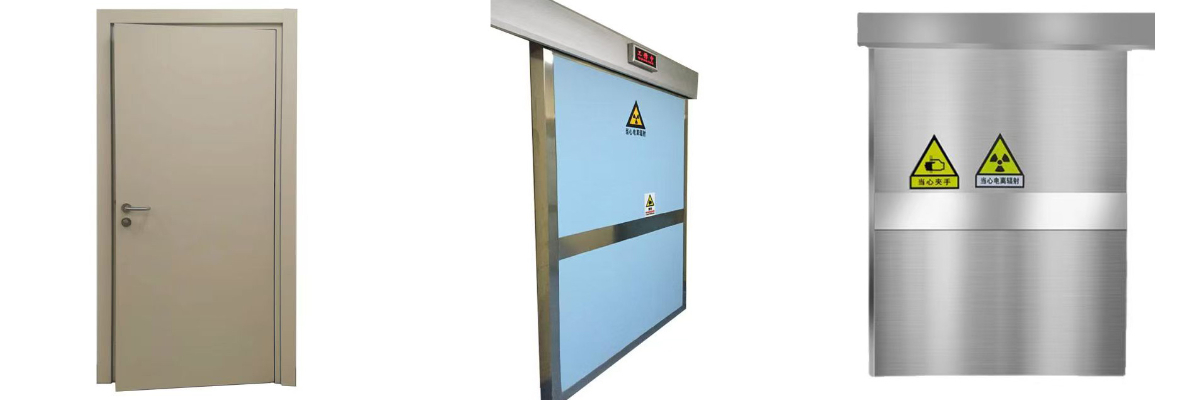

Product Categories

Based on the opening mechanism, Hinged Lead Doors can be classified into two types: Manual Hinged Lead Door and Electric Hinged Lead Door.

The Manual Hinged Lead Door requires manual effort to open and close. It is a simple and reliable option, suitable for facilities where frequent automatic operation is not necessary. The Electric Hinged Lead Door is equipped with an automated motorized system, allowing effortless opening and closing with the push of a button or remote control. This type is ideal for environments that demand high levels of convenience and operational efficiency, such as hospitals, laboratories, and specialized industrial sites.

1. Hinged Lead Shielding Door

Available in single-leaf, double-leaf, and leaf-and-a-half (asymmetrical) configurations, hinged lead shielding doors are designed with either inward or outward opening options. The door structure and material specifications are determined according to the radiation energy level (kV) and the dimensions of the doorway. The design of the door frame differs from that of the door leaf to ensure optimal radiation protection and mechanical performance.

2.Sliding Lead Protective Door

Available in single-leaf, double-leaf, and overhead track sliding configurations, the sliding lead protective door operates by moving parallel to the wall. The structure and materials of the door are selected based on the radiation intensity (kV level) and the dimensions of the doorway. The frame structure is different from that of a standard hinged door to accommodate the sliding mechanism while maintaining radiation shielding performance.

3.Electric Lead Protective Door

Electric sliding doors and electric hinged doors.
Electric lead protective doors are typically used for larger door panels. Due to the heavy weight of the door, manual operation can be difficult, making electric opening mechanisms the preferred choice. The opening methods are divided into hinged (swing) type and sliding (translation) type.

Product Features

Excellent Radiation Protection:
Effectively blocks or attenuates radiation sources such as X-rays and gamma rays, significantly reducing the amount of radiation transmitted from the source. This ensures that the radiation dose received by workers or patients remains well within safety standards.

Long Service Life:
The surface is made with thickened steel plates, offering superior durability and resistance to daily friction and impact.

Safe and Hygienic:
Provides complete radiation shielding, easy to clean and maintain, and effectively isolates radiation to ensure the safety of personnel. The door also features low noise operation and excellent sealing performance during use.

Application Scenarios

Medical Field:
Our radiation shielding doors are widely used in hospitals and medical facilities, including X-ray rooms, radiation therapy rooms, nuclear medicine diagnostic rooms, DR rooms, and CT imaging centers. These doors provide reliable protection for healthcare professionals and patients from harmful radiation exposure.

Industrial Field:
In industrial environments, our lead-lined doors are essential for facilities that handle radioactive materials, non-destructive testing (NDT) centers, and radiation inspection sites, ensuring workplace safety and compliance with radiation protection standards.

Customized Solutions
We offer customized radiation shielding doors tailored to your specific requirements. Factors such as protection space, door opening dimensions, and operational environment are fully considered during the design process to create the most suitable hinged lead-lined door for your project.
Multiple configurations are available, including single-leaf, double-leaf, and leaf-and-a-half (asymmetrical) designs.

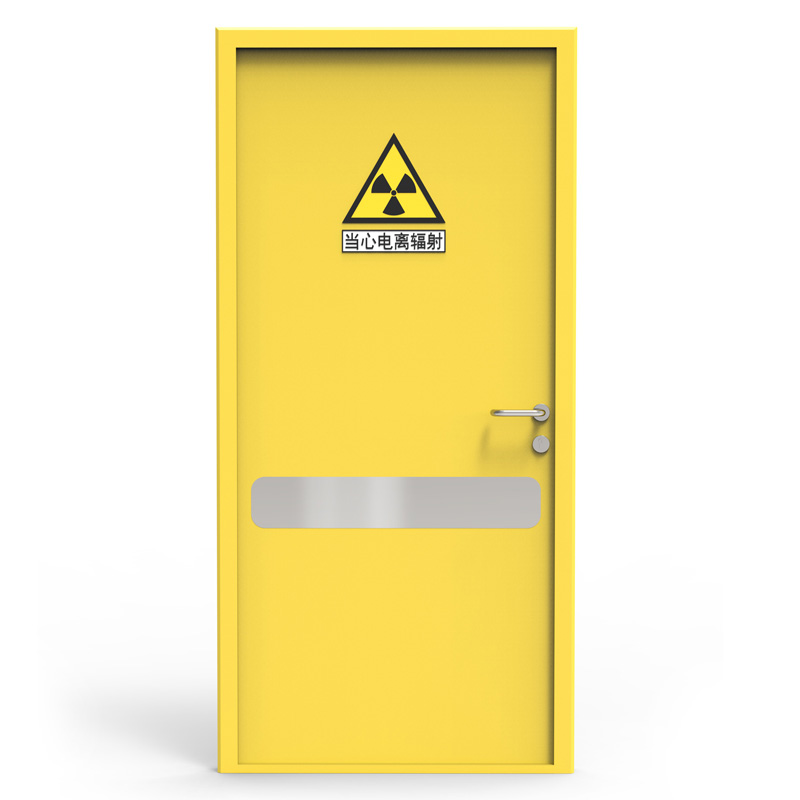

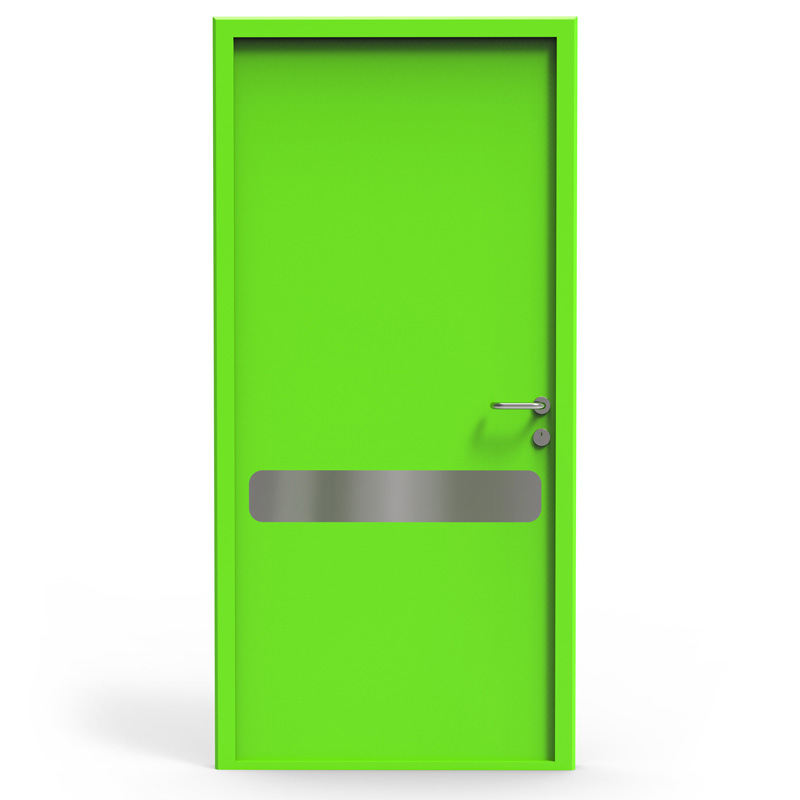

Besides the standard 304 stainless steel finish, we also offer optional surface materials such as color-coated steel plates, color-coated aluminum plates, and powder-coated steel panels to match your aesthetic and functional needs.
