What is a Double Opening Lead Lined Door? A Comprehensive Guide

In the worlds of construction, healthcare, and security, specific doors are required to perform highly specialized functions. One such door, the Double Opening Lead Lined Door, is a critical component in environments where safety, containment, and accessibility are paramount. But what exactly is it, and why is it so important? This comprehensive guide will break down everything you need to know, exploring its key features, primary applications, and essential considerations.

Introduction: Understanding the Core Concept

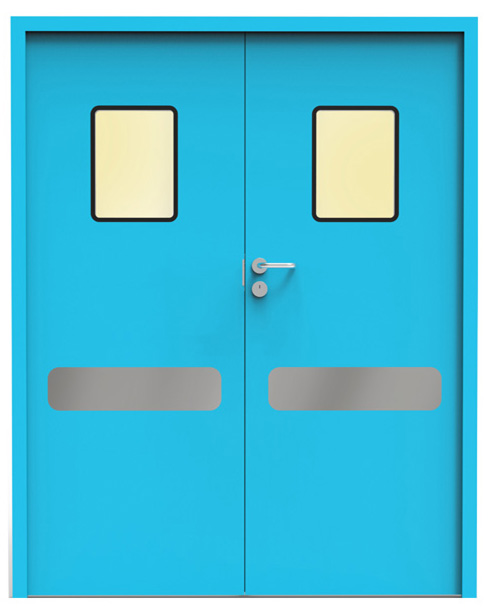

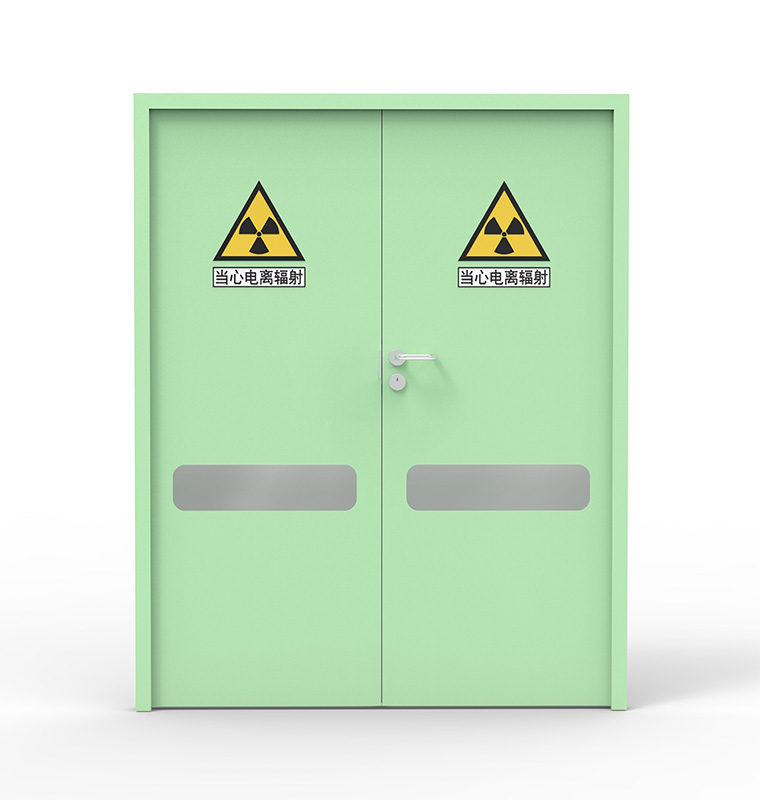

A Double Opening Lead Lined Door is exactly what its name suggests: it’s a door system with two leaves (panels) that both open, and it is internally lined with a layer of lead sheet. This combination addresses two distinct needs. The "double opening" aspect, often referred to as a double swing or double egress door, allows traffic to flow through from either direction, making it ideal for high-traffic areas. The "lead lined" component refers to the integration of a lead core within the door’s structure, which is designed to block harmful radiation.

These doors are engineered for durability, safety, and performance. They are not your standard interior doors; they are specialized barriers crucial for protecting people from the dangers of ionizing radiation, making them a specific and vital type of Lead Door For X Ray rooms and other secure areas.

How It Works: The Science of Radiation Shielding

The primary function of any lead lined door is to act as a barrier against radiation. This is where the science comes in.

The Role of Lead Shielding

Lead is the material of choice for radiation shielding due to its incredibly high density. Its atomic structure makes it highly effective at absorbing and blocking various forms of radiation, including X-rays and gamma rays. The lead core within the door acts as a formidable obstacle, preventing radiation from penetrating through to the other side. The effectiveness of the shielding is measured in millimeters of lead thickness (e.g., 1mm Pb, 2mm Pb). The required thickness depends on the type and energy of the radiation sources in the room.

Engineering a Double Opening Design

Incorporating this lead shielding into a double opening door requires precise engineering. The door leaves must be heavy-duty to support the weight of the lead core. Furthermore, the meeting point between the two leaves (called the stile) is a critical area. To ensure there is no radiation leakage through the gap, these doors feature special overlapping astragals or seals. When the doors are closed, these components create a tight, continuous radiation barrier across the entire doorway. Properly sealing the perimeter with lead-lined frames and automatic drop seals is also essential for complete protection. This meticulous design ensures the door functions as both a convenient access point and a safe Doors Lead barrier against harmful exposure.

Key Applications: Where Are These Doors Essential?

Double Opening Lead Lined Doors are deployed in environments where radiation is used and where high traffic flow is a concern. Their unique design makes them indispensable in several key sectors.

Medical and Healthcare Facilities

This is the most common application. Hospitals and clinics use radiation for diagnostic and therapeutic purposes. Any room housing an X-ray, CT scanner, MRI (with ancillary equipment), fluoroscopy machine, or nuclear medicine department requires robust shielding.

• X-Ray Rooms: These doors are literally the Lead Door For X Ray suites, protecting staff in control rooms and passersby in hallways from scatter radiation.

• Procedure Rooms: In cath labs and operating rooms using mobile C-arms, double doors allow for easy movement of equipment and patients on beds from either direction without compromising safety.

Industrial and Security Settings

Beyond healthcare, industries using radiation for inspection and quality control rely on these doors.

• Non-Destructive Testing (NDT): Facilities that use X-ray or gamma ray to inspect welds, castings, or aerospace components require shielding to contain radiation within the testing cell. The double opening feature facilitates the movement of large parts.

• Research Laboratories: Universities and government labs that work with radioactive materials or particle accelerators use these doors to secure their containment areas. In these high-security environments, ensuring that the Doors Lead shielding integrity is maintained is a non-negotiable safety protocol.

Veterinary Clinics

Modern veterinary medicine also utilizes advanced imaging like CT and X-ray. Animal patients come in all sizes, and the double door design is perfect for efficiently moving sedated animals on large gurneys into the imaging room while maintaining a safe environment for veterinarians and technicians.

Choosing the Right Door: Factors to Consider

Selecting the appropriate Double Opening Lead Lined Door is a complex process that should involve radiation safety officers and experts. Here are the critical factors to evaluate:

• Lead Thickness (Shielding Value): This is the most crucial specification. It must be calculated based on the radiation equipment's energy (kVp), workload, and distance to the door. Never guess this value; it must be determined by a qualified physicist.

• Door Core Material: The door must be constructed to handle the immense weight of the lead. Common cores include solid particle board, reinforced with steel or aluminum stiles and rails to prevent sagging over time.

• Hardware and Seals: The hardware must be heavy-duty. This includes lead-lined frames, reinforced hinges, and a suitable closing device. Perimeter seals, especially an automatic bottom drop seal that engages when the door closes, are vital for preventing radiation leakage under the door.

• Compliance and Certification: Ensure the door system meets all relevant local and international safety standards and building codes. The manufacturer should provide certification detailing the lead equivalence and quality controls.

When sourcing these specialized doors, it is advisable to work with reputable manufacturers like X Ray Doors, who have the expertise to guide you through the selection process, ensure precise engineering, and deliver a product that guarantees safety and durability for years to come.

Conclusion

A Double Opening Lead Lined Door is a sophisticated piece of safety infrastructure that seamlessly merges high-traffic accessibility with critical radiation protection. Its double-swing design offers unparalleled convenience and efficiency, while its lead core provides the essential barrier needed to keep people safe from harmful exposure. Whether it’s serving as the main Lead Door For X Ray department in a hospital or securing an industrial testing facility, understanding its function, applications, and selection criteria is key to implementing an effective and compliant radiation safety program. Investing in a high-quality door system from a trusted supplier is an investment in long-term safety and peace of mind.
